Your chimney works hard to protect your Cleveland home, but without a proper chimney cap, it’s vulnerable to water damage, animal intrusion, and debris buildup. A chimney cap is a metal cover with mesh screening that sits on top of your flue, acting as your chimney’s first line of defense against Northeast Ohio’s harsh weather conditions.
Installing a chimney cap might seem intimidating, but with the right tools and safety precautions, many homeowners can tackle this project themselves. Whether you’re dealing with a missing cap, replacing a damaged one, or performing routine maintenance, this guide will walk you through everything you need to know about chimney cap installation and care.
Quick Answer: Most chimney caps can be installed in 30-60 minutes using basic tools like a drill, masonry screws, and high-temperature sealant. The key is choosing the right cap size and type for your specific flue configuration.
What is a chimney cap and why does it matter
A chimney cap is essentially a protective cover that sits on top of your chimney flue or crown. Think of it as an umbrella for your chimney – it keeps rain, snow, and debris from entering while still allowing smoke and gases to escape safely.
The benefits of having a properly installed chimney cap extend far beyond just keeping water out. It prevents animals like birds, squirrels, and raccoons from nesting in your chimney, which can create dangerous blockages. The mesh screening also acts as a spark arrestor, containing any embers that might otherwise escape and potentially start a roof fire.
Without a chimney cap, your Cleveland home faces several risks. Water infiltration can cause rust in metal fireboxes, deteriorate mortar joints, and even lead to expensive structural damage. Given Northeast Ohio’s frequent rain, snow, and freeze-thaw cycles, the cost of installing a chimney cap is minimal compared to the thousands of dollars you might spend repairing water damage or removing animal nests.

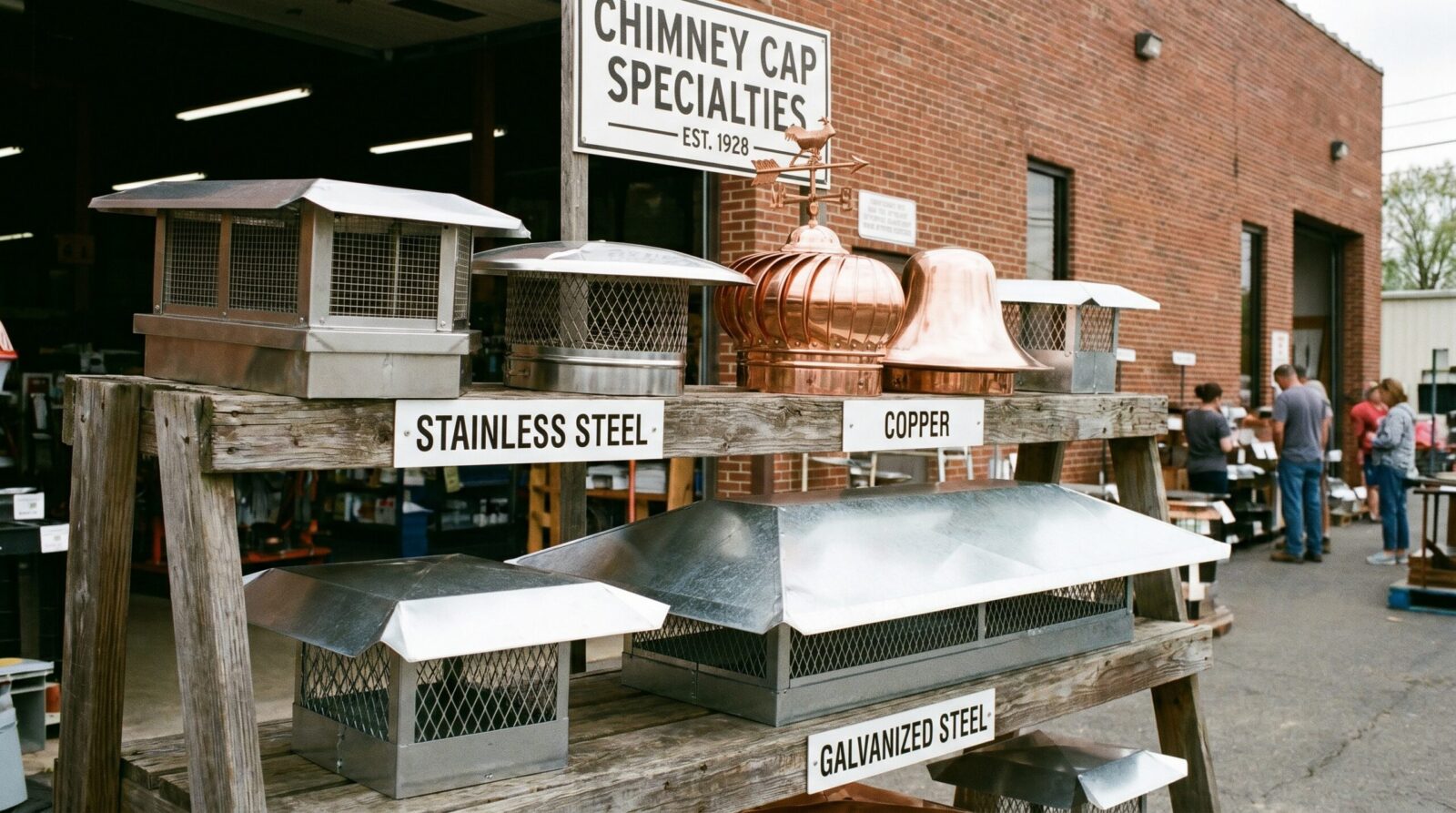

Types of chimney caps and choosing the right one
Understanding the different types of chimney caps helps you make the best choice for your specific situation. Single-flue caps are the most common and attach directly to individual clay or metal flues. These work well for most residential chimneys with one or two separate flues.
Multi-flue caps cover multiple flues at once and mount to the chimney crown rather than individual flues. Top-mount or crown-mount caps are ideal when you have several flues close together or when individual flue mounting isn’t practical.
Material choice significantly impacts durability and cost, especially in Cleveland’s climate. Galvanized steel offers good protection at an affordable price but may rust over time in harsh Northeast Ohio winters. Stainless steel provides excellent corrosion resistance and typically lasts 20-30 years, making it a smart investment for local homeowners. Copper caps offer the longest lifespan and develop an attractive patina, but come with a higher upfront cost.
The difference between a chimney cap and chimney crown often confuses homeowners. The crown is the concrete or masonry top of your chimney structure, while the cap sits on top of the flue itself. Both components work together to protect your chimney system from Cleveland’s variable weather conditions.
How to measure for the perfect fit
Getting accurate measurements is crucial for proper chimney cap installation. For square or rectangular clay flues, measure the outside dimensions at the top of the flue tile. Most residential flues measure either 8×8 inches, 8×13 inches, or 13×13 inches, but always verify with your own measurements.
Round metal flues require diameter measurements. Use a measuring tape to find the outside diameter of the pipe. Common sizes include 6, 7, 8, and 10 inches, though custom sizes exist.
When measuring for multi-flue caps, measure the overall length and width needed to cover all flues, ensuring the cap extends at least 3 inches beyond each flue opening. Check the manufacturer’s sizing chart to confirm your measurements fall within their recommended ranges.
Pro Tip: Always measure twice and order once. A cap that’s too small won’t provide adequate protection, while an oversized cap may not fit properly or could violate local building codes.

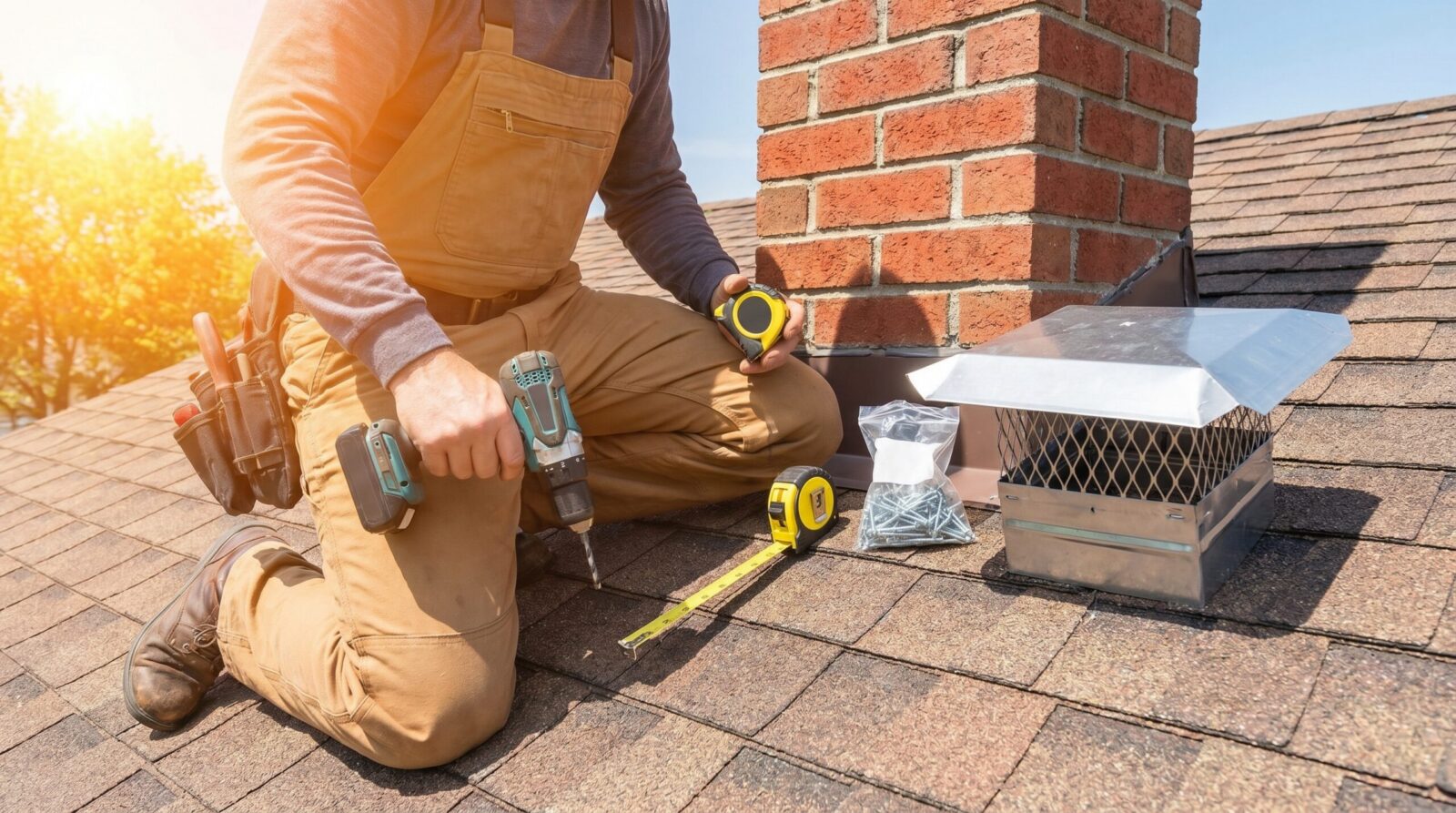

Step-by-step chimney cap installation
Tools and materials you’ll need:
– Correctly sized chimney cap
– Drill with masonry and metal bits
– Masonry screws or sheet metal screws
– High-temperature sealant
– Safety equipment (harness, non-slip shoes, gloves)
Installing on a round metal flue starts with sliding the cap over the flue opening until it seats completely. Most metal flue caps use either self-tapping screws or band clamps. If using screws, drill pilot holes and drive the screws through the pre-marked holes. For clamp-style caps, simply tighten the band clamp until secure.
Clay or masonry flue installation requires more precision. Position the cap over the flue and mark the screw locations with a pencil. Remove the cap and drill pilot holes using a masonry bit. Clean away any debris, then reposition the cap and drive masonry screws through the mounting holes.
Top-mount caps attach to the chimney crown rather than individual flues. Center the cap on the crown, ensuring it doesn’t overhang the edges. Mark the mounting holes, drill pilot holes, and secure with masonry screws. Apply a bead of high-temperature sealant around the base to prevent water infiltration.
Maintenance and troubleshooting your chimney cap
Regular maintenance keeps your chimney cap functioning properly and extends its lifespan. Inspect your cap at least once annually, preferably in late spring or early summer when weather conditions are favorable for roof work in the Cleveland area.
Look for signs of wear including rust spots, loose or missing screws, damaged mesh screening, or separation from the flue or crown. Remove any debris like leaves, twigs, or animal nests that may have accumulated around the cap – particularly important after Northeast Ohio’s stormy seasons.
Simple repairs often extend a cap’s life significantly. Tighten loose screws, apply rust-resistant paint to small rust spots, and replace damaged mesh sections when possible. However, if you notice significant structural damage, cracks in the crown, or persistent water leaks, it’s time to call a professional.
When to replace your chimney cap becomes obvious when you see extensive rust, cracked or missing parts, or if animals have damaged the mesh beyond repair. A properly maintained chimney cap should last 15-25 years depending on material and local weather conditions.
Safety First: Never attempt chimney work during wet, windy, or icy conditions – especially common in Cleveland winters. If your roof has a steep pitch or you’re uncomfortable with heights, hiring a professional is always the safer choice.
Professional installation makes sense for complex situations like multiple flues, damaged crowns, or when roof access is particularly challenging. Many local roofing contractors in the Cleveland area, including family-owned companies specializing in residential roofing solutions, can install chimney caps as part of broader roofing projects, ensuring proper integration with your overall roof system. When dealing with storm damage or insurance claims, working with experienced local professionals who understand Northeast Ohio’s weather patterns can be invaluable.
The investment in a quality chimney cap and proper installation pays dividends through years of reliable protection. Whether you choose to tackle the installation yourself or hire a professional, taking action to protect your chimney prevents far more expensive problems down the road. Your Cleveland home’s safety and your peace of mind are worth this relatively small investment in preventive maintenance.
